Model: JMJ500-1000-1500

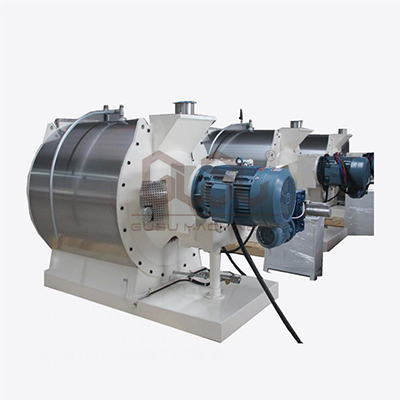

GUSU Automatic Chocolate Grinder/Peanut Butter Machine (JMJ500-1000-1500 Series)
The JMJ Series Automatic Chocolate Grinder and Refining Machines are high-performance, industrial-grade machines designed for chocolate and peanut butter production, as well as other food processing applications. These machines are available in JMJ500, JMJ1000, and JMJ1500 models, offering varying capacities to meet the diverse needs of small to large-scale manufacturers.
These machines are ideal for producing a wide range of products, including chocolate mass, compound coatings, pralines, specialty fillings, and peanut butter. Each model ensures precision grinding and refining with superior control over the final texture and consistency.
Description
Dimensions
GUSU Chocolate Machine JMJ500 Model
Total Power: 25.1 kW
Main Engine Power: 15 kW
Grid Motor Power: 1.1 kW
Heating Power: 9 kW
Maximum Volume: 500 kg
Grinding Time: 16–22 hours
Fineness: 20–25 µm
Spindle Speed: 35.5 rpm
Cylinder Construction: Stainless Steel
Air Extraction Function: Yes
Heating System: Jacket water heating with automatic temperature control
Maximum Jacket Pressure: 1.5 kg/cm²
Control: Button control box
Component Brand: Chint
Thermostat Brand: Yudian
Overall Dimensions: 2500 mm (L) × 1300 mm (W) × 1500 mm (H)
Net Weight: 2500 kg
GUSU Chocolate Machine JMJ1000 Model
Total Power: 32.2 kW
Main Engine Power: 22 kW
Grid Motor Power: 1.1 kW
Heating Power: 9 kW
Maximum Volume: 1000 kg
Grinding Time: 16–22 hours
Fineness: 20–25 µm
Spindle Speed: 38 rpm
Cylinder Construction: Stainless Steel
Air Extraction Function: Yes
Heating System: Jacket water heating with automatic temperature control
Maximum Jacket Pressure: 1.5 kg/cm²
Control: Button control box
Component Brand: Chint
Thermostat Brand: Yudian
Overall Dimensions: 3000 mm (L) × 1500 mm (W) × 1800 mm (H)
Net Weight: 3700 kg
GUSU Chocolate Machine JMJ1500 Model
Total Power: 47.1 kW
Main Engine Power: 37 kW
Grid Motor Power: 1.1 kW
Heating Power: 9 kW
Maximum Volume: 1500 kg
Grinding Time: 16–22 hours
Fineness: 20–25 µm
Spindle Speed: 39 rpm
Cylinder Construction: Stainless Steel
Air Extraction Function: Yes
Heating System: Jacket water heating with automatic temperature control
Maximum Jacket Pressure: 1.5 kg/cm²
Control: Button control box
Component Brand: Chint
Thermostat Brand: Yudian
Dimensions: 3000 mm (L) × 1600 mm (W) × 2000 mm (H)
Net Weight: 4500 kg
Modular & Interchangeable Design
Both the blades and grooved sections can be easily removed and replaced, offering flexibility for maintenance and part replacement, reducing downtime, and enhancing the machine's longevity.
User-Friendly Operation
The machines are designed to be extremely easy to operate, ensuring that operators with varying levels of expertise can run the system with minimal training.
Versatile Application
The JMJ500, JMJ1000, and JMJ1500 models are suitable for a wide range of products, including chocolate, compounds, pralines, special coatings, fillings, and peanut butter. This makes them ideal for manufacturers in the chocolate, confectionery, and food industries.
Advanced Control System (Optional)
The control panel is equipped with an optional PLC (Programmable Logic Controller) that allows for precise regulation of the operating parameters, providing greater control over the grinding and refining process for consistent results.
High Efficiency: The machines ensure optimal refining and consistent product quality throughout the entire process.
Durability: Built with high-quality stainless steel and 65Mn steel, these machines are designed for long-term, reliable operation in demanding production environments.
Temperature and Pressure Control: The jacket water heating system with automatic temperature control ensures precise processing conditions, contributing to the superior quality of the final product.
Ease of Maintenance: The modular design and replaceable components minimize downtime and make routine maintenance simpler and more cost-effective.
Customizable Capacity: With three models (JMJ500, JMJ1000, and JMJ1500) available, you can select the right machine to match your production needs, whether small or large scale.
The JMJ500, JMJ1000, and JMJ1500 machines are perfect for large-scale production of:
Chocolate mass
Compound chocolate coatings
Praline fillings
Peanut butter
Specialty spreads and coatings
| Model | Capacity(L) | Fineness(μm) | Grinding Time(h) | Motor Power(kW) | Weight(kg) | Outer Dimension(mm) |
| JMJ3000 | 3000 | 20-25 | 18-24 | 55 | 7000 | 4120x1920x2200 |
| JMJ2000 | 2000(2500kg) | 20-25 | 16-20 | 45 | 5600 | 3100x1920×2200 |
| JMJ1500 | 1500(1875kg) | 20-25 | 16-20 | 37 | 3800 | 2940x1600x2000 |
| JMJ1000 | 1000(1250kg) | 20-25 | 14-20 | 22 | 3450 | 2750×1400x1800 |
| JMJ500 | 500(625kg) | 20-25 | 14-20 | 15 | 2300 | 2500x1300x1500 |
| JMJ40 | 40(50kg) | 20-25 | 7-9 | 2.2 | 330 | 1100x630x1090 |
| JMJ20 | 20(25kg) | 20-25 | 7-9 | 1.5 | 260 | 1030x560x1000 |
Founded in
Factory Area
Skillful Employees
Gusu Food Processing Machinery Suzhou Co.,Ltd. is a high-tech enterprise integrating R&D, manufacturing, production, sales and after-sales. Since 1969, focusing on the development and production of chocolate complete equipment and automatic energy bar production line, is China's first manufacturing chocolate complete equipment enterprises, according to customer needs, to provide a complete set of chocolate equipment solutions. Known as the "mother of China chocolate" in the industry, Automatic Chocolate Grinder/Peanut Butter Machine JMJ500-1000-1500 Suppliers.
Main products include: melting pot, powdered sugar machine, chocolate grinding equipment, chocolate tempering machine, chocolate molding line, cookie pouring machine, energy bar cereal bar production line and so on. Complete product specifications, support customization. Automatic Chocolate Grinder/Peanut Butter Machine JMJ500-1000-1500 Wholesale
. The company is located in China's economic development, the beautiful scenery of Suzhou, with more than 50 years of chocolate equipment industry experience, perfect service system, professional and technical personnel of nearly 100 people, the factory covers an area of 35,000 square meters. Automatic Chocolate Grinder/Peanut Butter Machine JMJ500-1000-1500 Company, products exported to 130 countries, With Mars, Barry Callebaut, Nestle, Cadbury, Heluxue, Glico, Good good, Meiji and many other well-known enterprises to establish long-term cooperative relations. After years of development, won a number of national patents, products through ISO9001:2008 certification and CE certification. We adhere to customer demand as the center, continuous innovation, accumulation, to promote the progress of chocolate equipment market.
