Model: SJB32
During the chocolate production process, the ground chocolate slurry needs to be transferred from one process to another. The Gusu Machinery chocolate slurry delivery pump is used to transport the chocolate slurry between different equipment. During use, hot water should be introduced into the jacket of the SJB32 chocolate slurry pump. The water temperature should be maintained at around 40 to 50 degrees Celsius. After continuously introducing hot water for about half an hour, wait until the chocolate slurry inside the slurry pump is completely melted before starting the SJB32 to operate. The operation is simple and maintenance is convenient. The Gusu Machinery chocolate slurry pump can be used independently or in conjunction with other production lines for conveying chocolate slurry, meeting the usage requirements of different manufacturers.

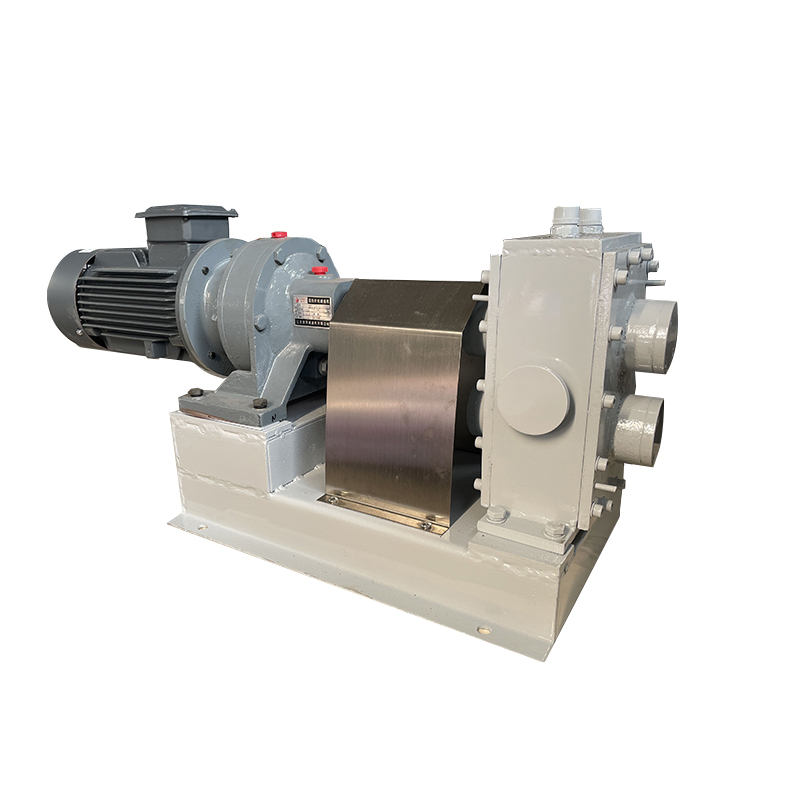

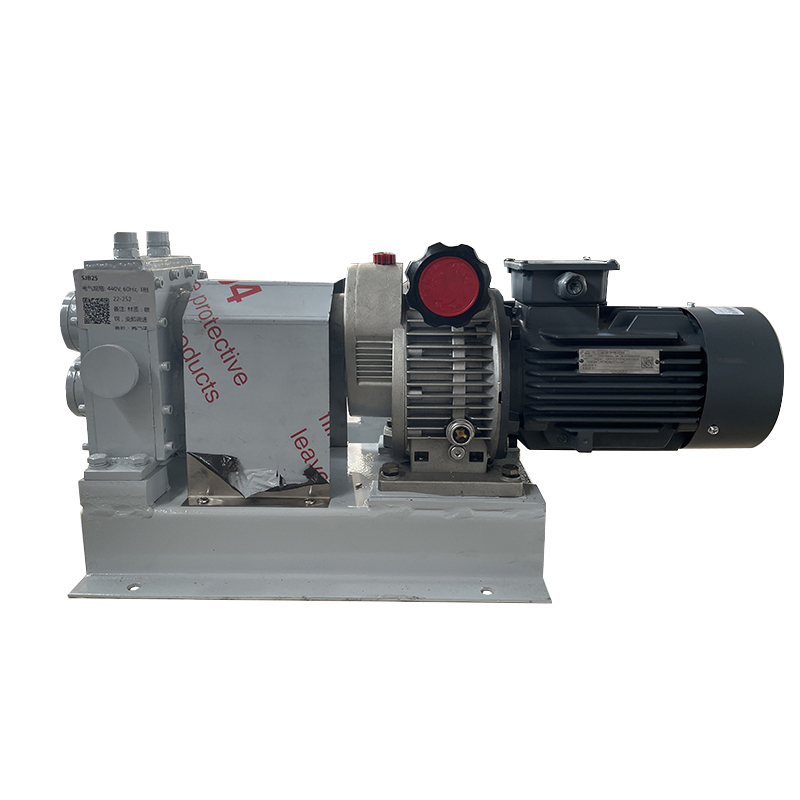

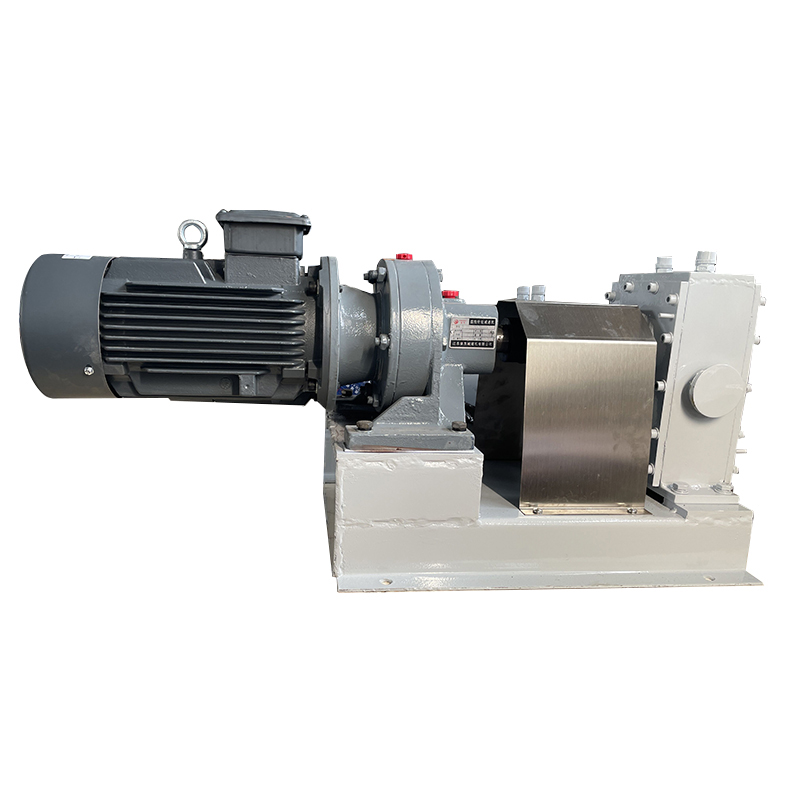

SJB32 consist of Pump body, pump cover, drive shaft, shaft, gear, import and export flange, coupling, reducer with motor and other components.
Description
Dimensions
|
Motor power |
1.5KW |
|
Speed |
127rpm |
|
Flow rate |
32L/min |
|
Outer dimension |
820×390×350mm |
|
Weight |
120KG |
Founded in
Factory Area
Skillful Employees
Gusu Food Processing Machinery Suzhou Co.,Ltd. is a high-tech enterprise integrating R&D, manufacturing, production, sales and after-sales. Since 1969, focusing on the development and production of chocolate complete equipment and automatic energy bar production line, is China's first manufacturing chocolate complete equipment enterprises, according to customer needs, to provide a complete set of chocolate equipment solutions. Known as the "mother of China chocolate" in the industry, SJB32 Easy To Operate Chocolate Delivery Pump Manufacturers.
Main products include: melting pot, powdered sugar machine, chocolate grinding equipment, chocolate tempering machine, chocolate molding line, cookie pouring machine, energy bar cereal bar production line and so on. Complete product specifications, support customization. SJB32 Easy To Operate Chocolate Delivery Pump Customized
. The company is located in China's economic development, the beautiful scenery of Suzhou, with more than 50 years of chocolate equipment industry experience, perfect service system, professional and technical personnel of nearly 100 people, the factory covers an area of 35,000 square meters. SJB32 Easy To Operate Chocolate Delivery Pump Suppliers, products exported to 130 countries, With Mars, Barry Callebaut, Nestle, Cadbury, Heluxue, Glico, Good good, Meiji and many other well-known enterprises to establish long-term cooperative relations. After years of development, won a number of national patents, products through ISO9001:2008 certification and CE certification. We adhere to customer demand as the center, continuous innovation, accumulation, to promote the progress of chocolate equipment market.
