Model: QDJ600,800,1000,1200

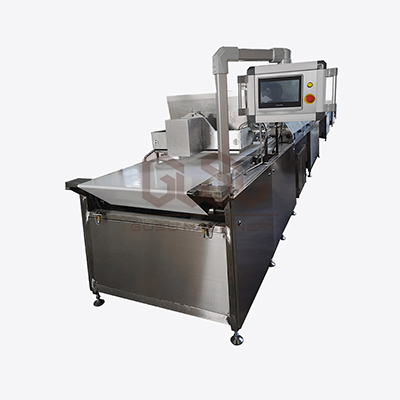

QDJ series Chocolate chips production line chocolate chips machine chips depositors can produce small chocolate products with different shapes and weights. Chocolate pellet products are poured on the conveyor belt and immediately enter the cooling tunnel for cooling. This universal chocolate chip depositor can produce different chocolate pellet products by changing the dispensing plate on the depositor. The belt width is 600,800,1000,1200 mm, according to the customer's production.
Description
Dimensions
Single or Dual-Color Output
The machine is capable of producing both monochrome and two-color chocolate pellets, allowing manufacturers to create visually appealing and differentiated products with ease.
Easy Cleaning & Maintenance
Designed with a focus on hygiene and convenience, the material cylinder and stirrer are built for quick disassembly, making daily cleaning and maintenance simple and efficient.
Food-Grade Construction
All components that come into contact with chocolate are made of 304 stainless steel, ensuring food safety, corrosion resistance, and long-term durability in demanding production environments.
Smart Control System
Equipped with a PLC touchscreen control panel, the machine offers intuitive operation. Users can easily adjust parameters such as speed, temperature, and volume, streamlining the production process and reducing the learning curve for operators.
The QDJ600 Dripping Machine is designed for efficient and precise production of chocolate chips or buttons. Equipped with advanced components and built for durability, this machine is suitable for medium- to large-scale chocolate manufacturing lines.
Technical Specifications:
Total Power: 10.5 kW
Motor Power: 1.5 kW
Heating Power: 3 kW
Production Output: 80–200 kg/h (dependent on product specifications)
Dripping System Options:
Servo-controlled dripping
Pneumatic-controlled dripping
Dripping System Options:
Frame: Standard stainless steel
Material Contact Parts: Food-grade 304 stainless steel
Dripping System Options:
Transmission system
Cooling tunnel
Drip pouring mechanism
Top die
Hot water tank with Grundfos pump for jacketed warm water supply to the hopper
Dripping System Options:
Width: 600 mm
Speed: 4–6 m/min (intermittent movement)
Dripping System Options:
Control Box with button interface
Electrical Components Brand: Chint
Thermostat Brand: Yudian
Overall Dimensions: 17,500 mm × 950 mm × 1,600 mm
(Cooling channel length customizable based on requirements)
The QDJ800 Drops Pouring Machine is a high-capacity solution designed for efficient production of chocolate drops or button-shaped granules. With an upgraded belt width and optimized output range, it is ideal for larger-scale confectionery manufacturing.
Technical Specifications:
Total Power: 12.7 kW
Motor Power: 2.2 kW
Heating Power: 3 kW
Production Capacity: 120–300 kg/h
(Output varies based on product type and settings)
Dripping Method Options:
Servo-controlled drip pouring
Pneumatic-controlled drip pouring
Machine Construction:
Frame: Standard stainless steel
Material Contact Surfaces: Food-grade 304 stainless steel
Integrated Components:
Transmission system
Cooling tunnel
Drip pouring unit
Top mold system
Hot water tank with Grundfos pump for circulating warm water around the hopper (jacketed heating)
Conveyor Belt:
Width: 800 mm
Speed: 4–6 m/min (intermittent movement)
Control System:
Equipped with a control box and manual button controls
Electrical Components Brand: Chint
Thermostat Brand: Yudian
Dimensions: 17,500 mm × 1,150 mm × 1,600 mm
(Cooling channel length can be customized based on user requirements)
The QDJ1000 is a high-capacity chocolate dripping machine engineered for large-scale production of chocolate chips, drops, and button-shaped granules. It offers flexible control options, durable construction, and smooth integration into modern chocolate processing lines.
Dripping System Options:
Total Power: 16.5 kW
Motor Power: 2.2 kW
Heating Power: 3 kW
Production Output: 150–400 kg/h
(Actual output depends on product and settings)
Drip Pouring Options:
Servo-controlled drip pouring
Pneumatic-controlled drip pouring
Construction Materials:
Frame: Standard stainless steel
Material Contact Parts: 304 food-grade stainless steel
Included Components:
Transmission system
Cooling tunnel
Drip pouring unit
Top mold
Hot water tank with Grundfos pump for jacketed warm water circulation to the hopper
Conveyor Belt:
Width: 1000 mm
Speed: 4–6 m/min (intermittent movement)
Control System:
Integrated control box with push-button interface
Electrical Components Brand: Chint
Thermostat Brand: Yudian
Overall Dimensions: 19,700 mm × 1,350 mm × 1,600 mm
(Cooling tunnel length customizable to specific production needs)
The QDJ1200 Dripping Machine is engineered for high-volume chocolate drop and button production. With an expanded belt width and robust output capacity, this model is ideal for large-scale manufacturing environments requiring consistency, precision, and efficiency.
Technical Specifications:
Total Power: 17.5 kW
Motor Power: 3.0 kW
Heating Power: 3.0 kW
Production Capacity: 160–450 kg/h
(Final output depends on specific product characteristics and process settings)
Dripping Options:
Servo-controlled drip pouring
Pneumatic-controlled drip pouring
Machine Structure:
Frame Material: Standard stainless steel
Material Contact Surfaces: Food-grade 304 stainless steel
Main Components Included:
Transmission system
Cooling tunnel
Dripping mechanism
Top mold system
Hot water tank with Grundfos pump for hopper jacket heating
Conveyor Belt:
Width: 1200 mm
Speed: 4–6 m/min (intermittent motion)
Control System:
Equipped with a control box and manual button interface
Electrical Components Brand: Chint
Thermostat Brand: Yudian
Machine Dimensions:
Length: 19,700 mm
Width: 1,550 mm
Height: 1,600 mm
(Cooling tunnel length customizable per production needs)
|
Model |
Conveyor Belt |
Drop Frequency |
Tunnel Work Temp. (℃) |
Total Power (kW) |
Weight(kg) |
Outer Dimension(mm) |
|
QDJ600 |
600 |
12-15 |
0～10℃ |
9.02 |
1500 |
14000x950x1750 |
|
QDJ800 |
800 |
12-15 |
0～10℃ |
10.52 |
2000 |
16000x1150x1750 |
|
QDJ1000 |
1000 |
12-15 |
0～10℃ |
22.75 |
2200 |
20000x1350x1750 |
|
QDJ1200 |
1200 |
12-15 |
0～10℃ |
30 |
2500 |
26000x1550x1750 |
