Model:

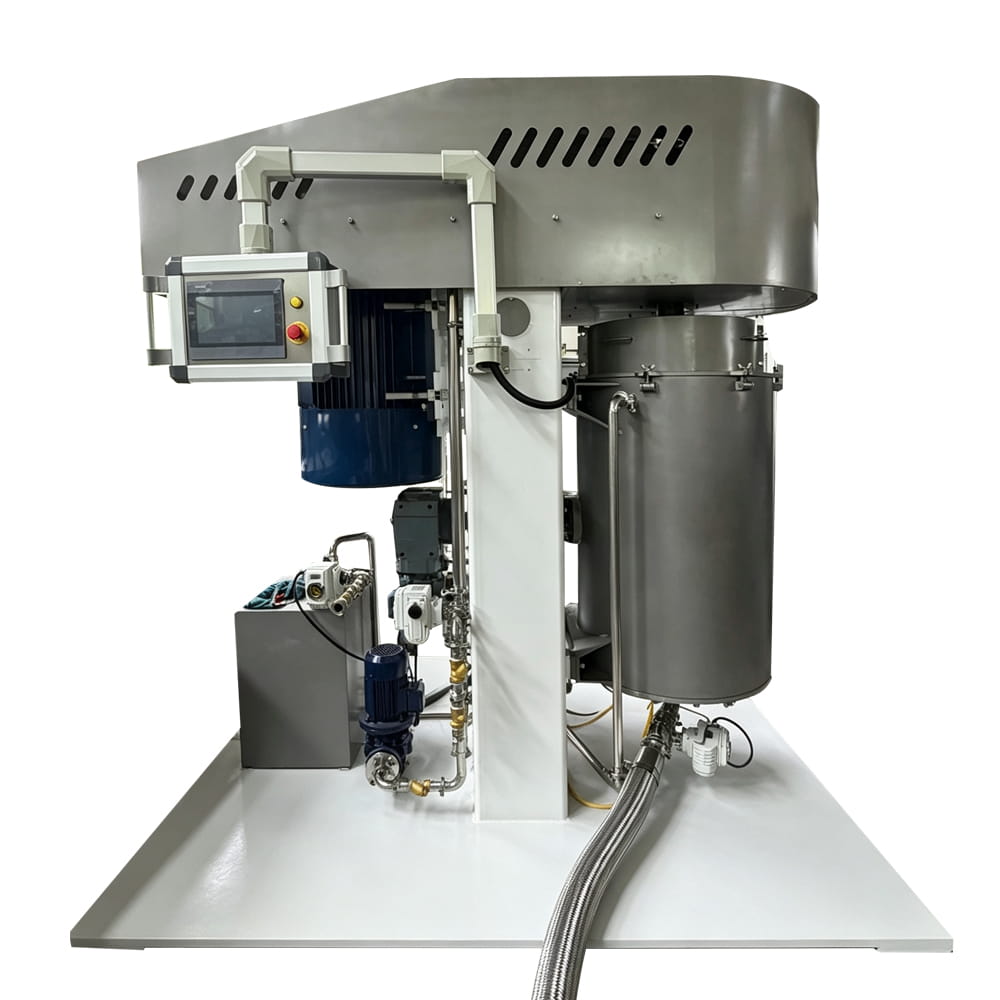

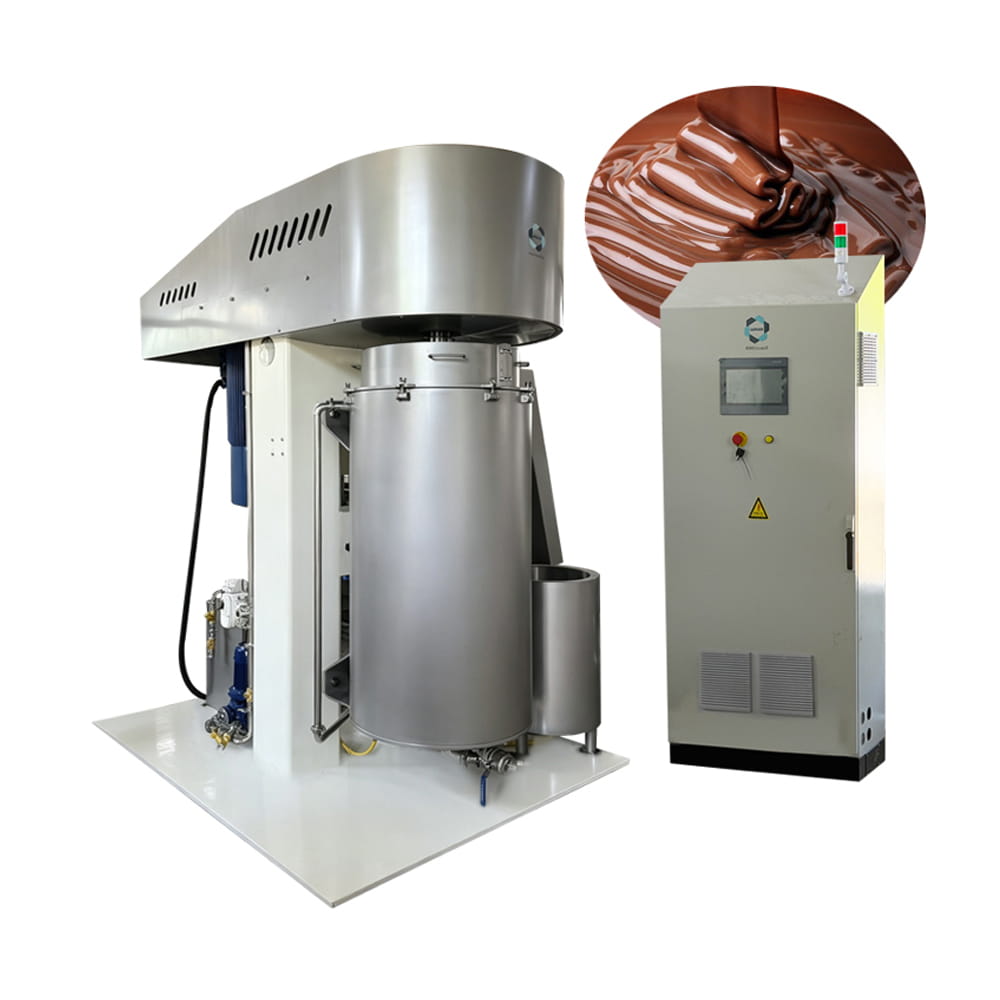

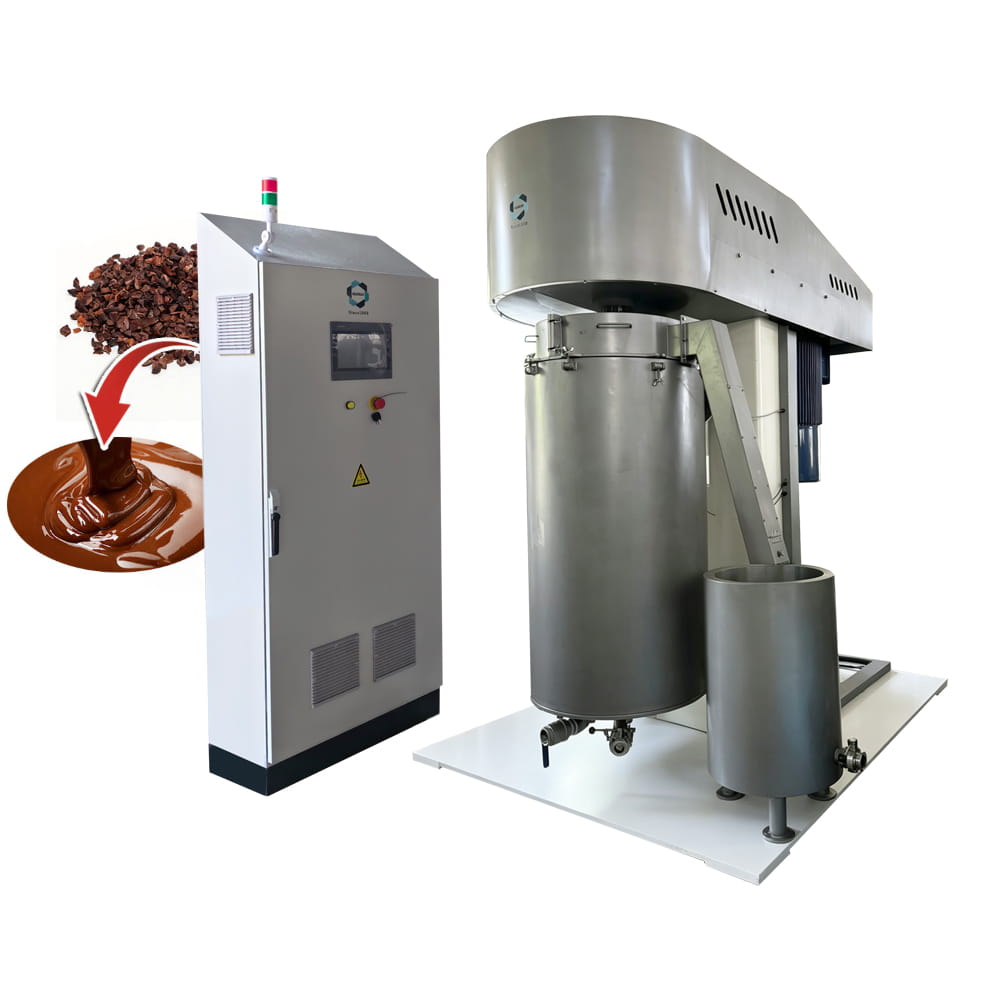

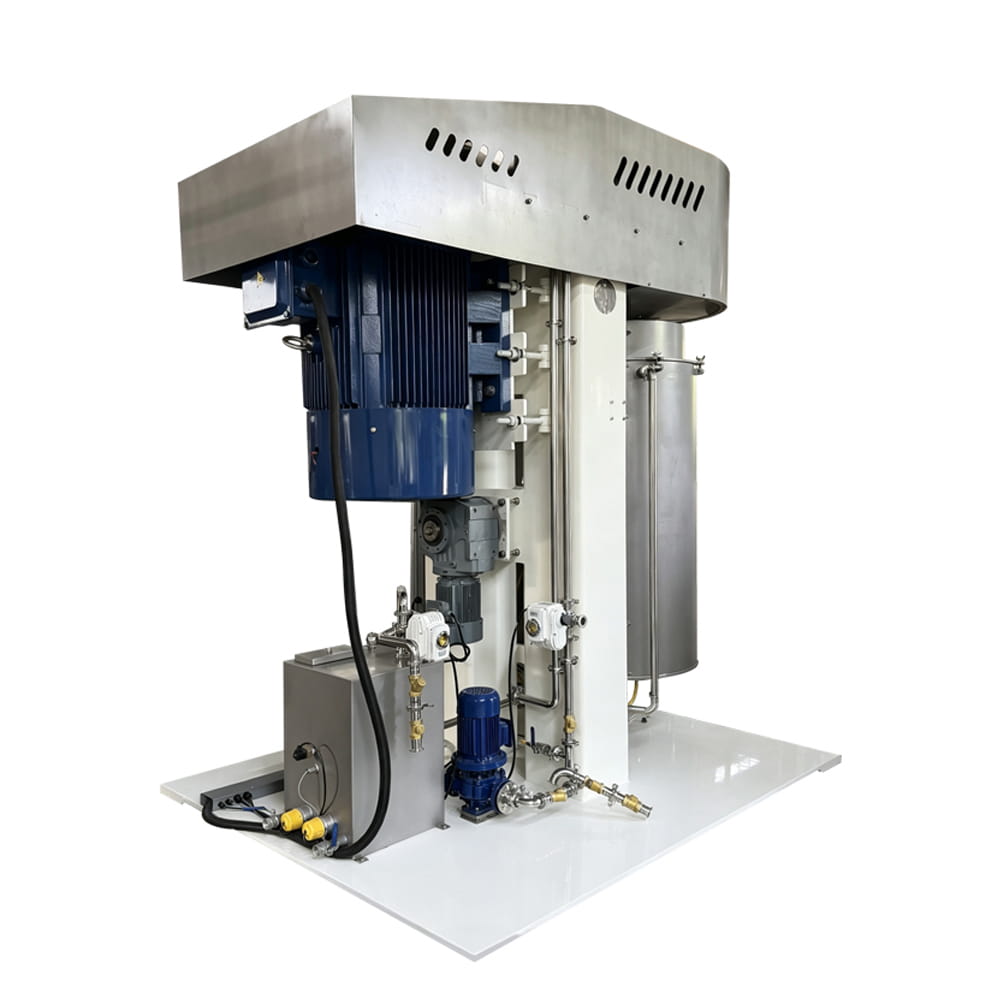

The DQMJ series chocolate ball mill is specially designed for the fine grinding of chocolate and is a core piece of equipment in a chocolate production line. Through high-speed agitation of the main shaft, steel balls impact and rub against the materials, quickly grinding mixtures of cocoa powder, sugar, milk powder, etc., into a fineness of 18-25 microns. The finished chocolate sauce is silky smooth, glossy, and free of granules. The entire machine in contact with materials is made of 304 stainless steel and is CE and ISO9001 certified, suitable for continuous production in medium to large-scale factories.
Description
1. Compact Structure, Smaller Footprint
The integrated vertical design simplifies the structure and maximizes factory space utilization; the independent integrated base makes installation simple, requiring no complex infrastructure.
2. Intelligent Touchscreen Fully Automatic Control
Equipped with a touchscreen control panel, it allows users to customize grinding time, spindle speed, and constant temperature, displaying real-time operating parameters, making it easy for beginners to operate.
3. Uniform Grinding, Stable Quality
The fineness is consistently maintained at 18-25 microns; the ground chocolate syrup has a high gloss and a smooth texture, suitable for direct connection to insulated tanks and temperature-controlled casting production lines.
4. Multiple Capacity Specifications Available
Small-scale experimental ball mills: 5L, 20L, 30L, 50L
Suitable for medium and large factories: 250L, 500L, 1000L, 1500L, 2000L
|
Model |
Capacity(L) |
Motor Power(kW) |
Spindle Speed(r/min) |
|
DQMJ5 |
5 |
1.1 |
290 |
|
DQMJ500 |
500 |
30 |
200 |
|
DQMJ1000 |
1000 |
55 |
170 |
Founded in
Factory Area
Skillful Employees
Gusu Food Processing Machinery Suzhou Co.,Ltd. is a high-tech enterprise integrating R&D, manufacturing, production, sales and after-sales. Since 1969, focusing on the development and production of chocolate complete equipment and automatic energy bar production line, is China's first manufacturing chocolate complete equipment enterprises, according to customer needs, to provide a complete set of chocolate equipment solutions. Known as the "mother of China chocolate" in the industry, custom DQMJ1500 Single Shaft Chocolate Ball Mill maker and producer.
Main products include: melting pot, powdered sugar machine, chocolate grinding equipment, chocolate tempering machine, chocolate molding line, cookie pouring machine, energy bar cereal bar production line and so on. Complete product specifications, support customization. Wholesale DQMJ1500 Single Shaft Chocolate Ball Mill Customized
. The company is located in China's economic development, the beautiful scenery of Suzhou, with more than 50 years of chocolate equipment industry experience, perfect service system, professional and technical personnel of nearly 100 people, the factory covers an area of 35,000 square meters. DQMJ1500 Single Shaft Chocolate Ball Mill Factory, products exported to 130 countries, With Mars, Barry Callebaut, Nestle, Cadbury, Heluxue, Glico, Good good, Meiji and many other well-known enterprises to establish long-term cooperative relations. After years of development, won a number of national patents, products through ISO9001:2008 certification and CE certification. We adhere to customer demand as the center, continuous innovation, accumulation, to promote the progress of chocolate equipment market.
