Model: JMJ3000

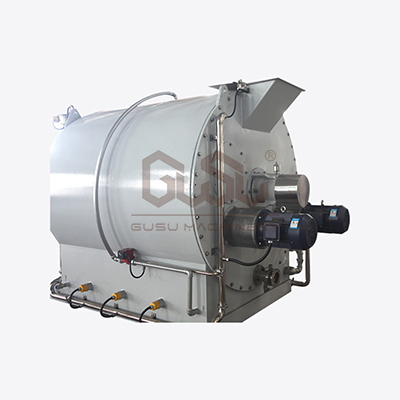

The JMJ3000 Chocolate Finishing Mill is an advanced industrial machine designed for large-scale chocolate production, offering reliable and efficient refining of chocolate and similar products. This equipment is optimized for extended operational cycles and is capable of processing up to 3000 kilograms per batch.
Description
Dimensions
Key Specifications:
Total Power: 65.1 kW
Main Engine Power: 55 kW
Grid Motor Power: 1.1 kW
Heating Power: 9 kW
Maximum Processing Capacity: 3000 kg per batch
Grinding Time: 18 to 24 hours
Final Fineness: 20–25 microns
Spindle Speed: 31 rpm
Cylinder Construction:
GUSU machine's main cylinder is encased in stainless steel, ensuring durability, corrosion resistance, and compliance with food safety standards. The interior components, including the lining strip and scraper, are made from 65Mn steel, which is highly resistant to wear and guarantees long-term functionality.
Temperature Control and Heating:
The mill incorporates a hydro-powered jacket heating system that operates with a water pump and automatic temperature control. The jacket operates under a pressure limit of 1.5 kg/cm², ensuring precise temperature management during the refining process.
Control System:
The JMJ3000 is equipped with a control box featuring button controls for ease of operation. The control system includes high-quality electrical components from Chint, and temperature regulation is managed by a Yudian thermostat, which ensures accurate temperature adjustments for consistent refining.
Dimensions and Weight:
Overall Dimensions: 4100 mm (L) × 1920 mm (W) × 2200 mm (H)
Net Weight: 6600 kg
Operational Features:
High Efficiency: The machine is designed to process large quantities of chocolate and other similar products efficiently, ensuring uniform refinement and consistent quality over extended processing times.
Modular and Maintainable: Both the blades and grooved sections are removable and replaceable, allowing for easy maintenance and part replacement as needed. This feature reduces downtime and maintenance costs.
Simple Operation: Despite its industrial scale, the machine is engineered to be user-friendly, with intuitive controls that simplify operation and minimize the need for specialized training.
Applications:
The JMJ3000 is particularly suitable for the production of:
Chocolate (dark, milk, or compound)
Pralines and filled chocolates
Coatings for confectionery
Specialty spreads and nut-based butters
Additional Features:
Modular Design:
Both the mixing blades and the grooved internal sections are fully removable and interchangeable, allowing for straightforward cleaning, maintenance, and part replacement.
User-Friendly Operation:
Designed with simplicity in mind, the machine offers intuitive controls and easy handling, making it accessible to operators with varying levels of technical experience.
Versatile Application:
Suitable for processing a broad range of products, including chocolate masses, compound coatings, praline fillings, specialty spreads, and other confectionery-related formulations.
Advanced Control System (Optional):
The machine can be optionally equipped with a PLC (Programmable Logic Controller) for enhanced automation and precise adjustment of operating parameters, supporting more efficient and consistent production.
| Model | Capacity(L) | Fineness(μm) | Grinding Time(h) | Motor Power(kW) | Weight(kg) | Outer Dimension(mm) |
| JMJ3000 | 3000 | 20-25 | 18-24 | 55 | 7000 | 4120x1920x2200 |
| JMJ2000 | 2000(2500kg) | 20-25 | 16-20 | 45 | 5600 | 3100x1920×2200 |
| JMJ1500 | 1500(1875kg) | 20-25 | 16-20 | 37 | 3800 | 2940x1600x2000 |
| JMJ1000 | 1000(1250kg) | 20-25 | 14-20 | 22 | 3450 | 2750×1400x1800 |
| JMJ500 | 500(625kg) | 20-25 | 14-20 | 15 | 2300 | 2500x1300x1500 |
| JMJ40 | 40(50kg) | 20-25 | 7-9 | 2.2 | 330 | 1100x630x1090 |
| JMJ20 | 20(25kg) | 20-25 | 7-9 | 1.5 | 260 | 1030x560x1000 |
